Architecture Deliverables:
Displayed below is our teams architecture documentation, including the final submission for Arch1.pdf.
Arch1.pdf Documentation
CRC Cards
The first stage of our design process was focused on psuedo-implementation, and working on the handwritten CRC Cards below:
UML Diagrams
To complete our design architecture, we built UML class diagrams, listed below:
These are the prototype/interim UML Diagrams we developed, which ended up changing as our development progressed:

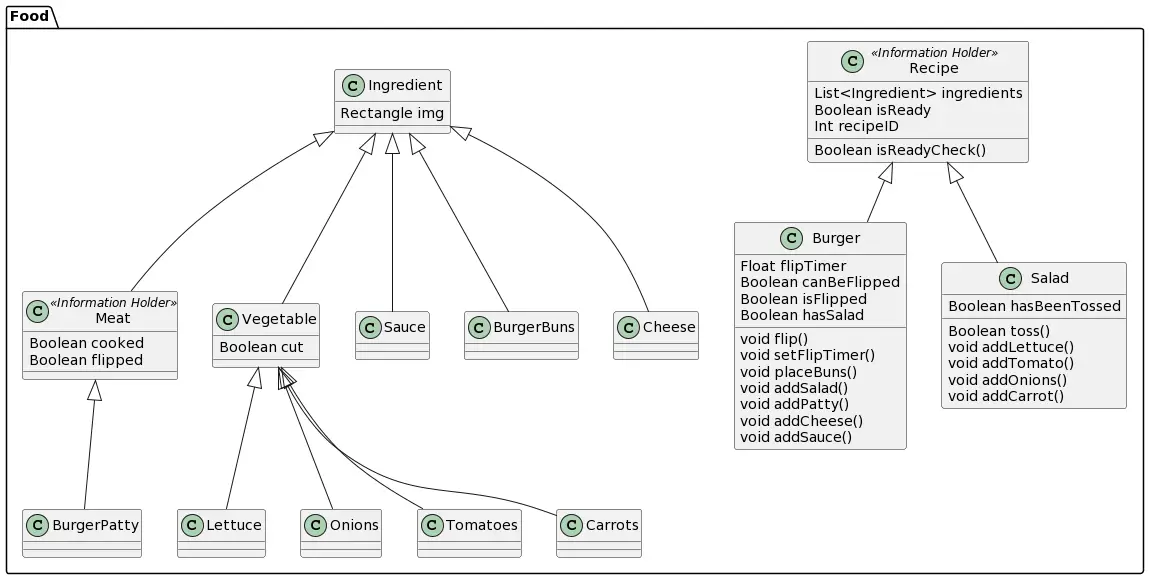

 Food Package Diagram.webp)

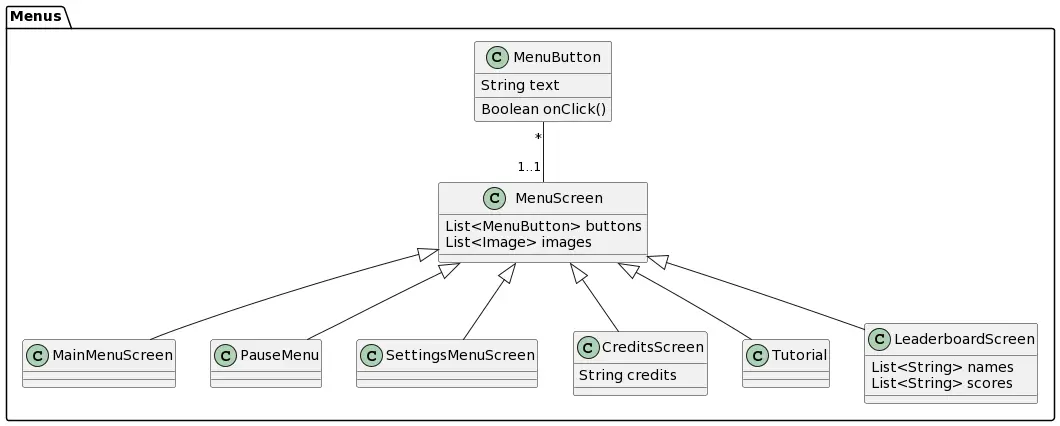

 Menus Package Diagram.webp)

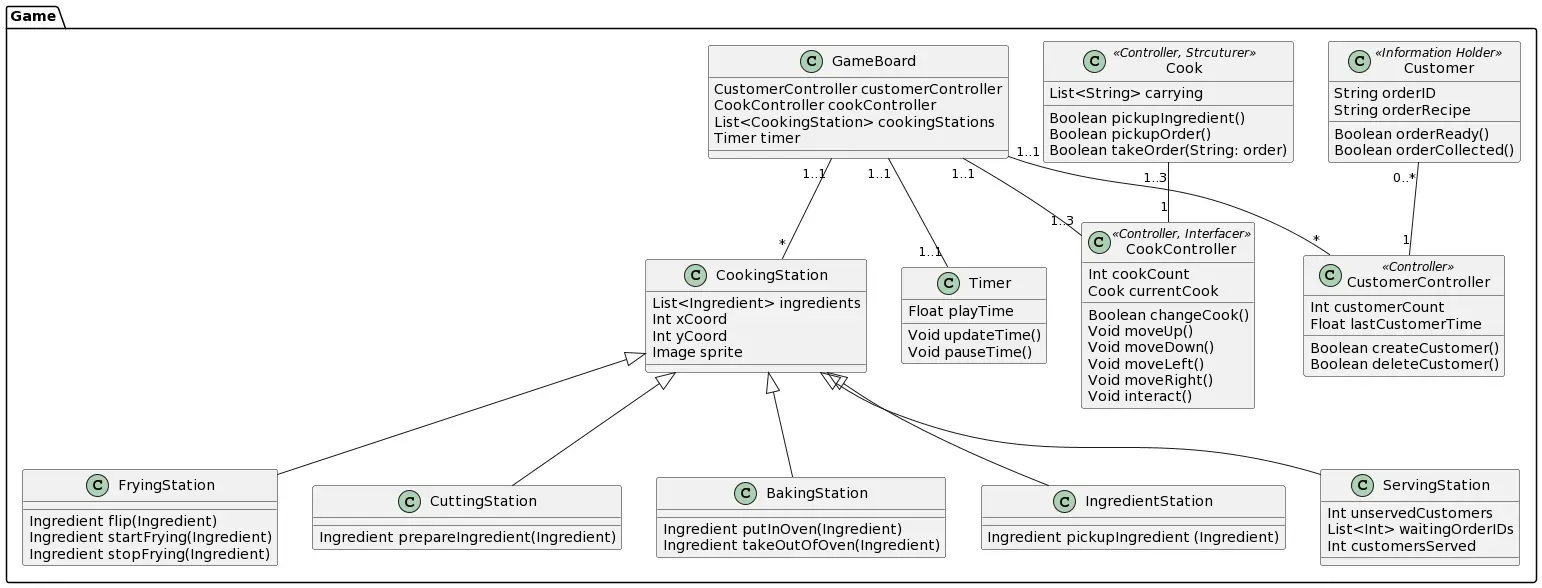

 game Package Diagram.webp)

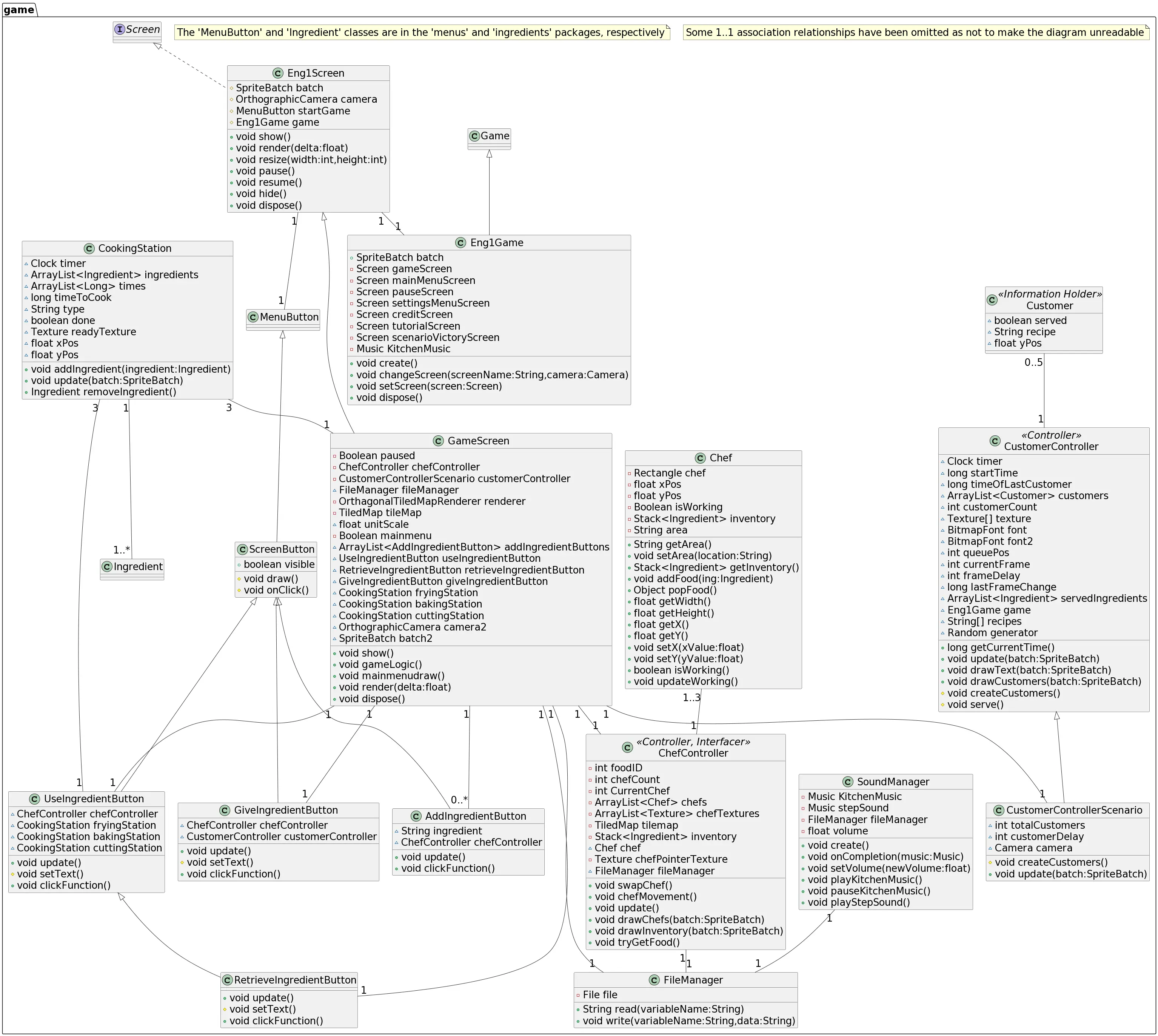

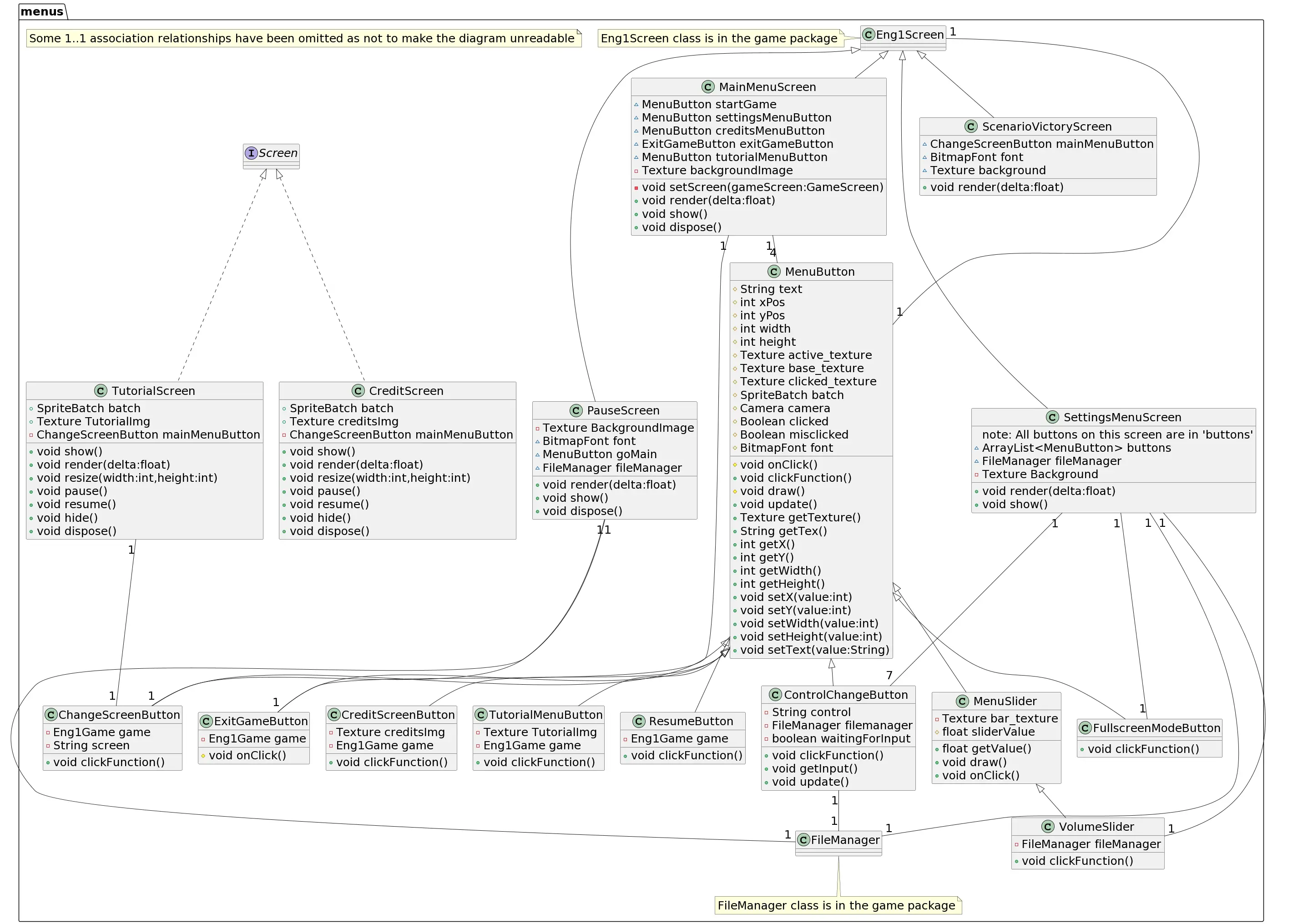

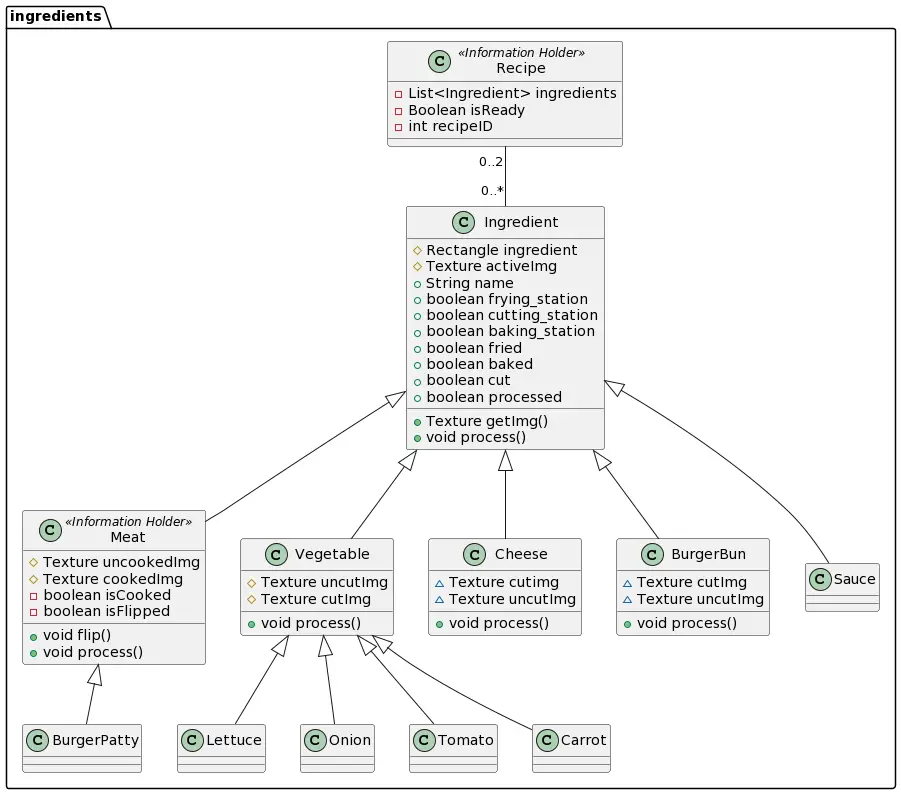

These are the finalised UML Class Diagrams, seen as part of our submitted Arch1.pdf:
